Threaded flanges dimensions according to standard EN 1092-1 PN40

PDF: Dimesions of threaded flanges EN 1092-1 PN40

Threaded Flanges Dimensions According To Standard EN 1092-1 PN40.

Threaded-Flanges-Dimensions-according-to-Standard-EN-1092-1-PN40

Threaded-Flanges-Dimensions-according-to-Standard-EN-1092-1-PN40

PN40.

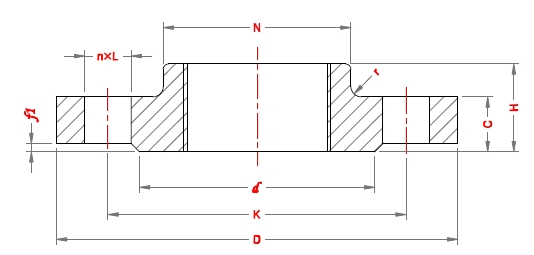

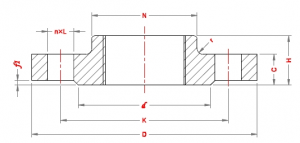

DN Pipe OD, A Outside Diamete, D Diameter of Bolt Circle, K Dia of Bolt Hole, L No. of bolt Diameter of Raised Face, d Height of Raised Face, f1 Flange thickness, C Length of Flange, H Neck Diameter , N Radius of Corners, r
10 17.2 90 60 14         4 40             2               16 22              30 4
15 21.3 95 65 14 4 45 2 16 22 35 4
20 26.9 105 75 14 4 58 2 18 26 45 4
25 33.7 115 85 14 4 68 2 18 28 52 4
32 42.4 140 100 18 4 78 2 18 30 60 6
40 48.3 150 110 18 4 88 3 18 32 70 6
50 60.3 165 125 18 4 102 3 20 34 84 6
65 76.1 185 145 18 8 122 3 22 38 104 6
80 88.9 200 160 18 8 138 3 24 40 118 8
100 114.3 235 190 22 8 162 3 24 44 145 8
125 139.7 270 220 26 8 188 3 26 48 170 8
150 168.3 300 250 26 8 218 3 28 52 200 10
200 219.1 375 320 30 12 285 3 34 52 260 10
250 273 450 385 33 12 345 3 38 60 312 12
300 323.9 515 450 33 16 410 4 42 67 380 12
350 355.6 580 510 36 16 465 4 46 72 424 12
400 406.4 660 585 39 16 535 4 50 78 478 12
450 457 685 610 39 20 560 4 57 84 522 12
500 608 755 670 42 20 615 4 57 90 576 12
600 610 890 795 48 20 735 5 72 100 686 12
