Hubbed slip on flanges dimensions according to standard EN 1092-1 PN100

PDF: Dimesions of hubbed slip on flanges EN 1092-1 PN100

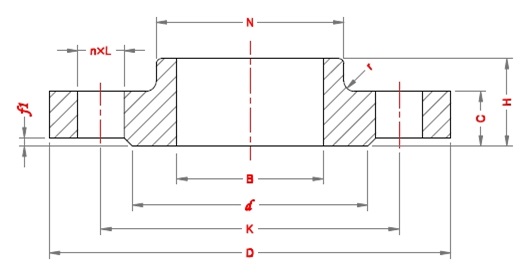

Hubbed slip on flanges dimensions according to standard EN 1092-1 PN100.

Dimesions-of-hubbed-slip-on-flanges-EN-1092-1-PN100

Dimesions-of-hubbed-slip-on-flanges-EN-1092-1-PN100

PN100.

DN Pipe OD, A Outside Diamete, D Diameter of Bolt Circle, K Dia of Bolt Hole, L No. of bolt Diameter of Raised Face, d Height of Raised Face, f1 Flange thickness, C Length of Flange, H Neck Diameter , N Radius of Corners, r Bore diameter,B
Series Ⅰ Series Ⅱ Series Ⅰ Series Ⅱ Series Ⅰ Series Ⅱ
10 17.2 14 100 70 14        4 40 2             20 28 40 4 18 15
15 21.3 18 105 75 14 4 45 2 20 28 43 4 22 19
20 26.9 25 130 90 18 4 58 2 22 30 52 4 27.5 26
25 33.7 32 140 100 18 4 68 2 24 32 60 4 34.5 33
32 42.4 38 155 110 22 4 78 2 24 32 68 6 43.5 39
40 48.3 45 170 125 22 4 88 3 26 34 80 6 49.5 46
50 60.3 57 195 145 26 4 102 3 28 36 95 6 61.5 59
65 76.1 79 220 170 26 8 122 3 30 40 118 6 77.5 78
80 88.9 89 230 180 26 8 138 3 32 44 130 8 90.5 91
100 114.3 108 265 210 30 8 162 3 36 52 158 8 116 110
125 139.7 133 315 250 33 8 188 3 40 56 188 8 141.5 135
150 168.3 159 355 290 33 12 218 3 44 60 225 10 170.5 161
