DIN 2655 PN25 Loose Flanges and Rings for Welding (Slip On Flanges and Plain Collars)
PDF: DIN 2655 PN25 Loose Flanges and Rings for Welding (Slip On Flanges and Plain Collars)
DIN 2655 PN25 Loose Flanges and Rings for Welding (Slip On Flanges and Plain Collars)
Brida loca y anillo de soldar Presion nominal 25
Loose flange and ring for welding Rated pressure 25
Lose Flansche Glatte Bunde Nenndruck 25

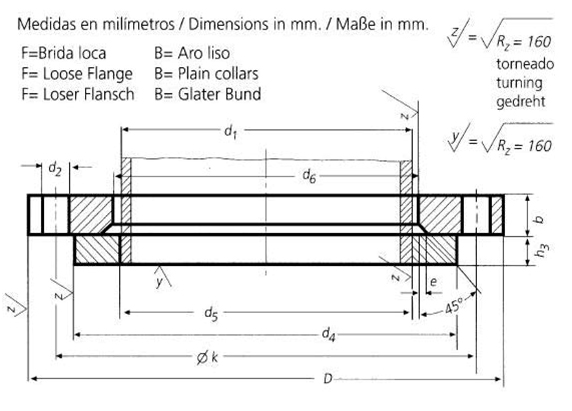

DIN-2655-PN25-Loose-Flanges-and-Rings-for-Welding-Slip-On-Flange-and-Plain-Collars
Dimensions in mm
|
Tubo / Pipe / Rohr -AnschluBmabe |
Brida / Flange / Flansch |
Tornillos / Screws / Schrauben |
Aro y borde / Ring / Bund und Bördel |
Peso de una brida / Weight of a flange / Gewicht eines Flansches (7,85 Kg/dm3) Kg |
|||||||||||
|
Diámetro Nominal |
d1 |
Numero / |
Rosca / |
||||||||||||
|
Rated Diameter Nennweite |
ISO Serie 1 Reihe 1 |
DIN Serie 2 Reihe 2 |
D |
d6 |
b |
k |
e |
Number / Anzahl |
Thread / Gewinde |
d2 |
d4 |
d5 |
h3 |
Brida / Flange / Flansch |
Aro / Ring / Bund |
|
10 a 150 |
Véanse bridas locas y aros según DIN 2656, presión nominal 40. |
||||||||||||||
|
10 to 150 |
See flages according to DIN 2656. Rated pressure 40. |
||||||||||||||
|
10 bis 150 |
Lose Flansche und Bunde nach DIN 2656, Nenndruck 40 verwenden. |
||||||||||||||
|
200 |
219,1 |
– |
360 |
225 |
26 |
310 |
8 |
12 |
M24 |
26 |
278 |
221,8 |
24 |
11,7 |
4,53 |
|
250 |
– |
267 |
425 |
273 |
30 |
370 |
8 |
12 |
M27 |
30 |
335 |
270,2 |
26 |
17,9 |
6,56 |
|
273 |
– |
279 |
276,2 |
||||||||||||
|
300 |
323,9 |
– |
485 |
329 |
34 |
430 |
8 |
16 |
M27 |
30 |
395 |
327,6 |
28 |
24,7 |
8,8 |
|
350 |
355,6 |
– |
555 |
362 |
38 |
490 |
8 |
16 |
M30 |
33 |
450 |
359,7 |
32 |
35,6 |
13,2 |
|
– |
368 |
374 |
372,2 |
||||||||||||
|
400 |
406,4 |
– |
620 |
413 |
42 |
550 |
8 |
16 |
M33 |
36 |
505 |
411 |
34 |
47,5 |
16,5 |
|
– |
419 |
426 |
423,7 |
||||||||||||
|
500 |
508 |
– |
730 |
517 |
50 |
660 |
8 |
20 |
M33 |
36 |
615 |
513,6 |
38 |
71,1 |
25,3 |
