Socket Weld Pipe Flanges

Socket Weld Pipe Flanges

Socket welding flange is like a slip on flange ,it is used specially for small sizes piping systems. The shape of a socket welding flange is like a slip on flange with a block in the inner bore of the flange which name is socket. And the socket thickness is common same with the pipe thickness.



socket-weld-flange-drawing

socket-weld-flange-drawing

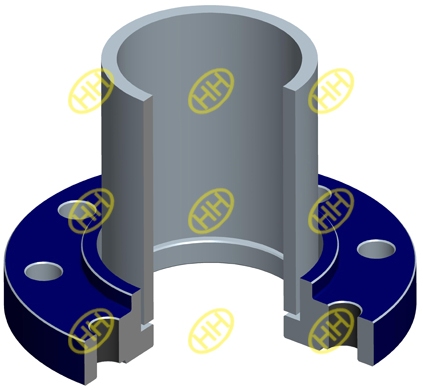

Socket Welding Flange with Pipe Connection

The socket welding connection is on kind of pipe end for fillet welding, as we know the welding forged pipe fittings of ANSI /ASME B16.11 are socket welding joint , they are same application with the socket welding flanges, mainly used in small sizes and high pressure piping connection.

socket-weld-flange-pipe-connection-design

socket-weld-flange-pipe-connection-design

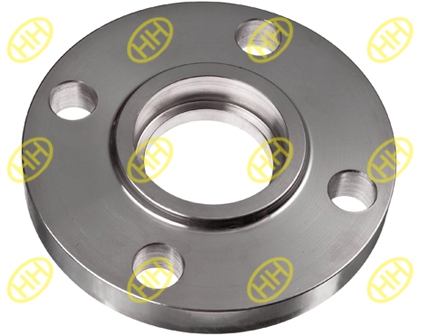

 Sealing Face of Socket Welding Flange:

Socket Weld pipe flanges are commonly supplied with a raised face (RF), flat face (FF). When a raised face is necessary for socket weld pipe flanges, the standard height of the face is 1/16″ when the flanges pressure is less than class400 . When socket weld pipe flanges is class 400 and up, the standard socket weld pipe flange raised face height is 1/4″.

Socket-Weld-Flange

Socket-Weld-Flange

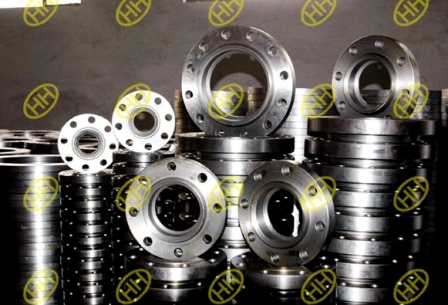

The socket welding flange are typically used in hydraulic piping systems and steam distribution lines, Hebei haihao flange factory can supply the socket welding flange in all materials and customized specifications.

socket-weld-flange-production-in-haihao-flange-factory

socket-weld-flange-production-in-haihao-flange-factory
