Provide ABS 3.2 marine grade inspection flanges and pipe fittings of the shipyard

Recently, we have completed a batch of flanges and pipe fittings provided to Singapore shipyard and carried out the marine class inspection of ABS classification society at level 3.2. Here is the list of products.

Description
Seamless Elbow 10″ Sch.40/STD; 90° LR; A420 WPL6; ASME B16.9, BW ASME B16.25 (NACE ,ABS 3.2)
Seamless Elbow 12″ Sch./STD; 90° LR; A420 WPL6; ASME B16.9, BW ASME B16.25 (NACE ,ABS 3.2)
Seamless Elbow 16″ Sch.30/STD; 90° LR; A420 WPL6; ASME B16.9, BW ASME B16.25 (NACE ,ABS 3.2)
Seamless Tee 16″ Sch.30/STD; 90° LR; A420 WPL6; ASME B16.9, BW (NACE ,ABS 3.2)
Blind Flange 150 lb RF; 16″; A350 LF2 CL1, ASME B16.5 (NACE ,ABS 3.2)
Weld Neck Flange 150 lb RF; 16″ Sch.30/STD; A350 LF2 CL1, ASME B16.5 (NACE ,ABS 3.2)
Weldolet 16″ Sch.80/XS – 2″ Sch.80/XS – A350 LF2 CL1; MSS SP-97, BW ASME B16.25 (NACE ,ABS 3.2)
Seamless Reducing Tee 16″ Sch.STD – 10″ Sch.STD; A420 WPL6, BW ASME B16.9 (NACE ,ABS 3.2)
Seamless Reducing Tee 16″ Sch.STD – 12″ Sch.STD; A420 WPL6, BW ASME B16.9 (NACE ,ABS 3.2)
Seamless Elbow 12″ Sch.40; 45° LR; A234 WPB; ASME B16.9 BW (NACE ,ABS 3.2)
Seamless Elbow 6″ Sch.80; 45° LR; A234 WPB; ASME B16.9 BW (NACE ,ABS 3.2)
Seamless Elbow 12″ Sch.40; 90° LR; A234 WPB; ASME B16.9 BW (NACE ,ABS 3.2)
Seamless Elbow 6″ Sch.80; 90° LR; A234 WPB; ASME B16.9 BW (NACE ,ABS 3.2)
Seamless Elbow 8″ Sch.60; 90° LR; A234 WPB; ASME B16.9 BW (NACE ,ABS 3.2)
Seamless Tee 8″ Sch.60;  A234 WPB; ASME B16.9, BW ASME B16.25 (NACE ,ABS 3.2)
Blind Flange 150 lb RF; 8″; A105N, ASME B16.5, BW ASME B16.25 (NACE ,ABS 3.2)
Weld Neck Flange 150 lb RF; 6″ Sch.80/XS; A105N; ASME B16.5 BW B16.25 (NACE ,ABS 3.2)
Weld Neck Flange 150 lb RF; 8″ Sch.60 ; A105N; ASME B16.5, BW ASME B16.25 (NACE ,ABS 3.2)

Finally, we passed the qualification inspection of ABS, and they stamped us on our material list.

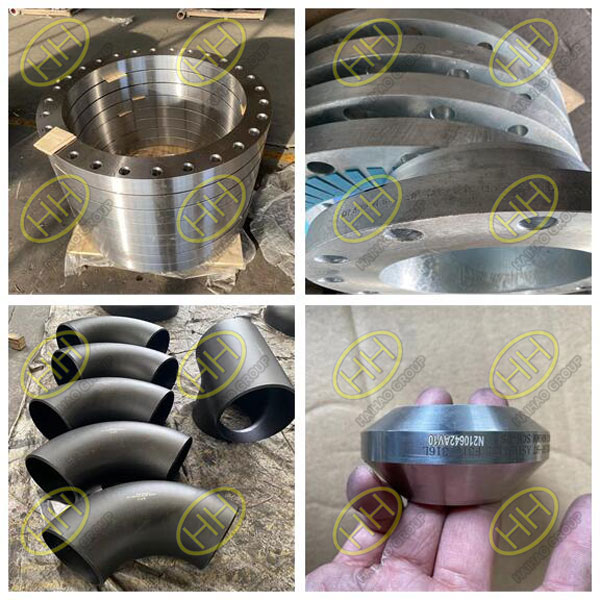

Flanges and pipe fittings

Flanges and pipe fittings

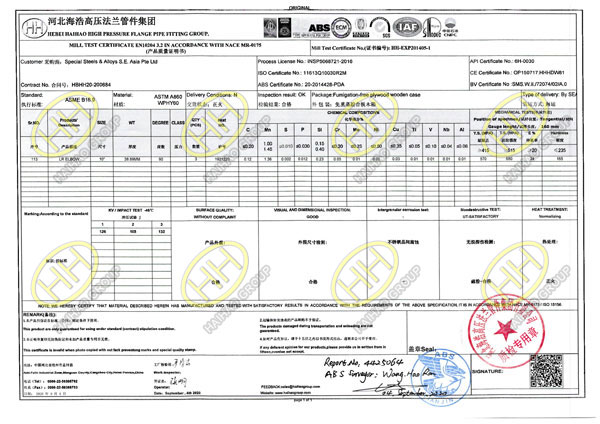

Qualification inspection of ABS

Qualification inspection of ABS
