Flange-Olet Definition:

A Flange-olet (Flange-outlet) is also called Nipoflange or Weldoflange, its shape looks like a Long weld neck flange. It could be regarded as a combination of a long weld neck flange and a weldolet , or a nipolet welded with a weld neck flange.

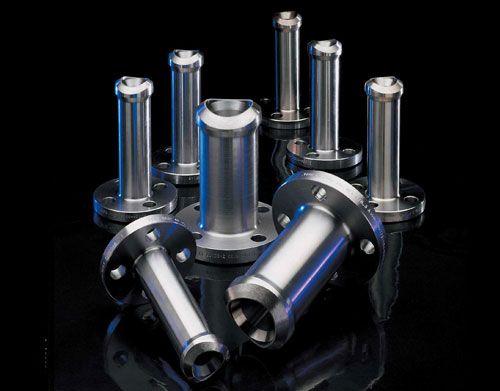

nipoflange-flange-olet

nipoflange-flange-olet

Application of Flange-olet:

The Flange-olet is used for a 90° branch connection from a main pipe. On the run pipe side , the flangeolet is designed like a weldolet, it will welded with the run pipe as a branch of the pipe. On another side ,the flange-olet is a flange connection, this flange dimensions could be designed as per EN1092, ASME/ANSI B16.5 standard or other codes.

hebei-haihao-flange-factory-flange-olet-nipo-flange-production

hebei-haihao-flange-factory-flange-olet-nipo-flange-production

Material of Flange-olet:

The flange-olet is produced in forging and machining process, it is forged material, commonly the flange-olet is a integral forging without any welding seam. It is first produced in forging process from UK. The flange-olet could be in forged carbon steel material ,stainless steel material or alloy steel material.

Hebei haihao group has enough professional and experienced team to design and produce the flange-olet, our flange-olets are used widely all over the world .
