Threaded flanges dimensions according to standard EN 1092-1 PN100

PDF: Dimesions of threaded flanges EN 1092-1 PN100

Threaded Flanges Dimensions According To Standard EN 1092-1 PN100.

Threaded-Flanges-Dimensions-according-to-Standard-EN-1092-1-PN100

Threaded-Flanges-Dimensions-according-to-Standard-EN-1092-1-PN100

PN100.

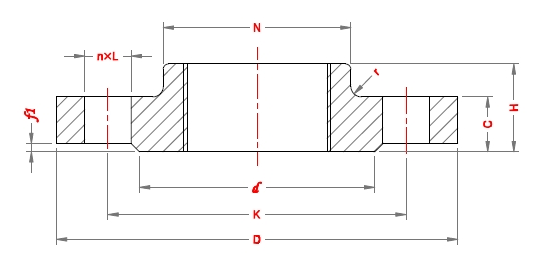

DN Pipe OD, A Outside Diamete, D Diameter of Bolt Circle, K Dia of Bolt Hole, L No. of bolt Diameter of Raised Face, d Height of Raised Face, f1 Flange thickness, C Length of Flange, H Neck Diameter , N Radius of Corners, r
10 17.2 100 70 14         4 40               2               20 28              40 4
15 21.3 105 75 14 4 45 2 20 28 43 4
20 26.9 130 90 18 4 58 2 20 30 52 4
25 33.7 140 100 18 4 68 2 24 32 60 4
32 42.4 155 110 22 4 78 2 24 32 68 6
40 48.3 170 125 22 4 88 3 26 34 80 6
50 60.3 195 145 26 4 102 3 28 36 95 6
65 76.1 220 170 26 8 122 3 30 40 118 6
80 88.9 230 180 26 8 138 3 32 44 130 8
100 114.3 265 210 30 8 162 3 36 52 158 8
125 139.7 315 250 33 8 188 3 40 56 188 8
150 168.3 355 290 33 12 218 3 44 60 225 10
