DIN 2569 PN100 BSPT Threaded Flanges with Neck Dimensions

PDF: DIN 2569 PN100 BSPT Threaded Flanges with Neck Dimensions

DIN 2569 PN100 BSPT Threaded Flanges with Neck Dimensions

Bridas roscadas con cuello Presion nominal 100
Threaded flanges with neck Rated pressure 100
Gewinde flansche mit Ansatz   Nenndruck 100

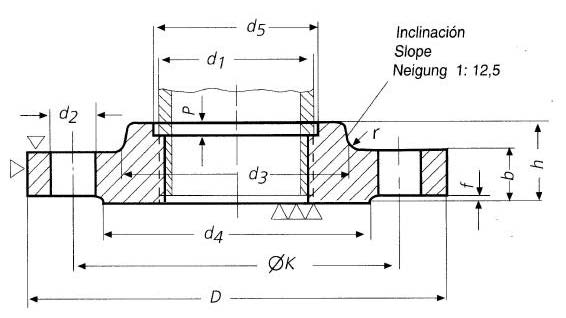

DIN-2569-PN100-BSPT-Threaded-Flanges-with-Neck-Dimensions

DIN-2569-PN100-BSPT-Threaded-Flanges-with-Neck-Dimensions

Dimensions in mm

Diámetro Nominal Rated Diameter Nennweite

d1

Brida / Flange / Flansch

Cuello / Neck / Ansatz

Resalto / Raised face / Dichtleiste

Tornillos / Screws / Schrauben

Peso de una brida / Weight of a flange / Gewicht eines Flansches (7,85 Kg/dm3)

Rosca / Thread / Whitworth-

D

b

k

h1

d3

d5

p

r

d4

f

Numero / Number /

Rosca / Thread /

d2

Kg



Rohrgewinde



Anzahl

Gewinde




DIN 2999



10

17,2

R 3/8

100

20

70

28

40

18

4

2

50

2

4

M 12

14

1,08

15

21,3

R 1/2

105

20

75

28

43

22

6

2

55

2

4

M 12

14

1,19

20

26,9

R 3/4

130

22

90

30

52

28

7

2

68

2

4

M 16

18

2

25

33,7

R 1

140

24

100

32

60

35

7

3

78

2

4

M 16

18

2,54

32

42,4

R 1 1/4

155

24

110

32

68

43

7

3

85

2

4

M20

22

2,99

40

48,3

R 1 1/2

170

26

125

34

80

49

7

3

98

3

4

M20

22

3,87

50

60,3

R 2

195

28

145

36

95

61

7

3

115

3

4

M24

26

5,42

65

76,1

R 2 1/2

220

30

170

40

118

77

7

3

140

3

8

M24

26

7,11

80

88,9

R 3

230

32

180

44

130

90

7

3

150

3

8

M24

26

8,21

100

114

R 4

265

36

210

52

158

116

7

3

175

3

8

M27

30

12,1

125

140

R 5

315

40

250

56

188

141

7

3

210

3

8

M30

33

18,6

150

165

R 6

355

44

290

60

225

167

7

3

250

3

12

M30

33

25,1
