ANSI / ASME Standard Flange Types

PDF: ANSI/ASME STANDARD FLANGES TYPES

ANSI /ASME STANDARD Flange Types :

weld-neck-flange-type

weld-neck-flange-type

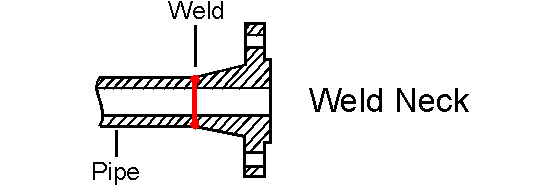

Weld Neck Flange:

This flange is circumferentially welded into the system at its neck which means that the integrity of the butt welded area can be easily examined by radiography. The bores of both pipe and flange match, which reduces turbulence and erosion inside the pipeline. The weld neck is therefore favoured in critical applications.

Slip-on-flange-type

Slip-on-flange-type

Slip-On Flange:

This flange is slipped over the pipe and then fillet welded. Slip-on flanges are easy to use in fabricated applications.

Bling-flange-type

Bling-flange-type

Blind Flange

This flange is used to blank off pipelines, valves and pumps, it can also be used as an inspection cover. It is sometimes referred to as a blanking flange.

socket-welding-flange-type

socket-welding-flange-type

Socket Welding Flange:

This flange is counter bored to accept the pipe before being fillet welded. The bore of the pipe and flange are both the same therefore giving good flow characteristics.

threaded-flange-type

threaded-flange-type

Threaded Flange:

This flange is referred to as either threaded or screwed. It is used to connect other threaded components in low pressure, non-critical applications. No welding is required.

Lap-Joint-flange-type

Lap-Joint-flange-type

Lap Joint Flange:

These flanges are always used with either a stub end or taft which is butt welded to the pipe with the flange loose behind it. This means the stub end or taft always makes the face. The lap joint is favoured in low pressure applications because it is easily assembled and aligned. To reduce cost these flanges can be supplied without a hub and/or in treated, coated carbon steel.

ring-type-joint-flange-face

ring-type-joint-flange-face

Ring Type Joint Sealing face Flange:

This is a method of ensuring leak proof flange connection at high pressures. A metal ring is compressed into a hexagonal groove on the face of the flange to make the seal. This jointing method can be employed on Weld Neck, Slip-on and Blind Flanges.

Hebei Haihao Flange factory can produce all the above types ANSI/ASME flanges, welcome to contact us for further information.
