ANSI/ASME B16.5 Slip On Flange Dimensions (150lb-1500lb)

PDF: ANSI/ASME B16.5 Slip On Flange Dimensions (CLASS 150lb- CLASS 1500lb)

ANSI/ASME B16.5 Slip On Flange Dimensions (150lb-1500lb) :

ANSI-ASME-B16-5-Slip-On-Flange-Dimensions-class150lb

ANSI-ASME-B16-5-Slip-On-Flange-Dimensions-class150lb

Class 150 lbs

Pipe



Flange Data



Hub

Raised Face

Drilling Data

Weight

NominalPipe Size



Outside Diameter

Overall Diameter

Inside Diameter

FlangeThickness min

Overall Length

Hub Diameter

Face Diameter

Number of Holes

Bolt Hole Diameter

Diameter of Circle of Holes

kg/piece



in

in

in

in

in

in

in



in

in



mm

mm

mm

mm

mm

mm

mm



mm

mm



1/2

0.840 21.30

3.500 88.90

0.880 22.40

0.440 11.20

0.620 15.70

1.190 30.20

1.380 35.10

4

0.620 15.70

2.380 60.45

0.39

3/4

1.050 26.70

3.880 98.60

1.090 27.70

0.500 12.70

0.620 15.70

1.500 38.10

1.690 42.90

4

0.620 15.70

2.750 69.85

0.56

1

1.315 33.40

4.250 108.0

1.360 34.50

0.560 14.20

0.690 17.50

1.940 49.30

2.000 50.80

4

0.620 15.70

3.120 79.25

0.78

11/4

1.660 42.20

4.620 117.3

1.700 43.20

0.620 15.70

0.810 20.60

2.310 58.70

2.500 63.50

4

0.620 15.70

3.500 88.90

1.03

11/2

1.900 48.30

5.000 127.0

1.950 49.50

0.690 17.50

0.880 22.40

2.560 65.00

2.880 73.15

4

0.620 15.70

3.880 98.60

1.32

2

2.375 60.30

6.000 152.4

2.440 62.00

0.750 19.10

1.000 25.40

3.060 77.70

3.620 91.90

4

0.750 19.10

4.750 120.7

2.06

21/2

2.875 73.00

7.000 177.8

2.940 74.70

0.880 22.40

1.120 28.40

3.560 90.40

4.120 104.6

4

0.750 19.10

5.500 139.7

3.28

3

3.500 88.90

7.500 190.5

3.570 90.70

0.940 23.90

1.190 30.20

4.250 108.0

5.000 127.0

4

0.750 19.10

6.000 152.4

3.85

31/2

4.000 101.6

8.500 215.9

4.070 103.4

0.940 23.90

1.250 31.75

4.810 122.2

5.500 139.7

8

0.750 19.10

7.000 177.8

4.81

4

4.500 114.3

9.000 228.6

4.570 116.1

0.940 23.90

1.310 33.30

5.310 134.9

6.190 157.2

8

0.750 19.10

7.500 190.5

5.30

5

5.563 141.3

10.00 254.0

5.660 143.8

0.940 23.90

1.440 36.60

6.440 163.6

7.310 185.7

8

0.880 22.40

8.500 215.9

6.07

6

6.625 168.3

11.00 279.4

6.720 170.7

1.000 25.40

1.560 39.60

7.560 192.0

8.500 215.9

8

0.880 22.40

9.500 241.3

7.45

8

8.625 219.1

13.50 342.9

8.720 221.5

1.120 28.40

1.750 44.50

9.690 246.1

10.62 269.7

8

0.880 22.40

11.75 298.5

12.1

10

10.75 273.0

16.00 406.4

10.88 276.3

1.190 30.20

1.940 49.30

12.00 304.8

12.75 323.9

12

1.000 25.40

14.25 362.0

16.5

12

12.75 323.8

19.00 482.6

12.88 327.1

1.250 31.75

2.190 55.60

14.38 365.3

15.00 381.0

12

1.000 25.40

17.00 431.8

26.2

14

14.00 355.6

21.00 533.4

14.14 359.1

1.380 35.10

2.250 57.15

15.75 400.1

16.25 412.8

12

1.120 28.40

18.75 476.3

34.6

16

16.00 406.4

23.50 596.9

16.16 410.5

1.440 36.60

2.500 63.50

18.00 457.2

18.50 469.9

16

1.120 28.40

21.25 539.8

44.8

18

18.00 457.2

25.00 635.0

18.18 461.8

1.560 39.60

2.690 68.30

19.88 505.0

21.00 533.4

16

1.250 31.75

22.75 577.9

48.9

20

20.00 508.0

27.50 698.5

20.20 513.1

1.690 42.90

2.880 73.15

22.00 558.8

23.00 584.2

20

1.250 31.75

25.00 635.0

61.9

24

24.00 609.6

32.00 812.8

24.25 616.0

1.880 47.80

3.250 82.60

26.12 663.4

27.25 692.2

20

1.380 35.10

29.50 749.3

86.9

Notes -Weights are based on manufacturer’s data and are approximate. -Flat face flanges may be provided at full thickness, C, or with raised face removed (the latter is nonstandard).

ANSI-ASME-B16-5-Slip-On-Flange-Dimensions-class300lb

ANSI-ASME-B16-5-Slip-On-Flange-Dimensions-class300lb

Class 300 lbs



Pipe



Flange Data



Hub

Raised Face

Drilling Data

Weight

NominalPipe Size



Outside Diameter

Overall Diameter

Inside Diameter

FlangeThickness min

Overall Length

Hub Diameter

Face Diameter

Number of Holes

Bolt Hole Diameter

Diameter of Circle of Holes

kg/piece



in

in

in

in

in

in

in



in

in



mm

mm

mm

mm

mm

mm

mm



mm

mm



1/2

0.840 21.30

3.750 95.20

0.880 22.40

0.560 14.20

0.880 22.40

1.500 38.10

1.380 35.10

4

0.620 15.70

2.620 66.55

0.64

3/4

1.050 26.70

4.620 117.3

1.090 27.70

0.620 15.70

1.000 25.40

1.880 47.70

1.690 42.90

4

0.750 19.10

3.250 82.50

1.12

1

1.315 33.40

4.880 123.9

1.360 34.50

0.690 17.50

1.060 26.90

2.120 53.80

2.000 50.80

4

0.750 19.10

3.500 88.90

1.36

11/4

1.660 42.20

5.250 133.3

1.700 43.20

0.750 19.00

1.060 26.90

2.500 63.50

2.500 63.50

4

0.750 19.10

3.880 98.60

1.68

11/2

1.900 48.30

6.120 155.4

1.950 49.50

0.810 20.60

1.190 30.20

2.750 69.85

2.880 73.15

4

0.880 22.40

4.500 114.3

2.49

2

2.375 60.30

6.500 165.1

2.440 62.00

0.880 22.30

1.310 33.20

3.310 84.00

3.620 91.90

8

0.750 19.10

5.000 127.0

2.87

21/2

2.875 73.00

7.500 190.5

2.940 74.70

1.000 25.40

1.500 38.10

3.940 100.0

4.120 104.6

8

0.880 22.40

5.880 149.4

4.32

3

3.500 88.90

8.250 209.5

3.570 90.70

1.120 28.40

1.690 42.90

4.620 117.3

5.000 127.0

8

0.880 22.40

6.620 168.1

5.85

31/2

4.000 101.6

9.000 228.6

4.070 103.4

1.190 30.20

1.750 44.40

5.250 133.3

5.500 139.7

8

0.880 22.40

7.250 184.2

7.34

4

4.500 114.3

10.00 254.0

4.570 116.1

1.250 31.70

1.880 47.70

5.750 146.0

6.190 157.2

8

0.880 22.40

7.880 200.1

9.61

5

5.563 141.3

11.00 279.4

5.660 143.8

1.380 35.00

2.000 50.80

7.000 177.8

7.310 185.7

8

0.880 22.40

9.250 234.9

12.3

6

6.625 168.3

12.50 317.5

6.720 170.7

1.440 36.50

2.060 52.30

8.120 206.2

8.500 215.9

12

0.880 22.40

10.62 269.7

15.6

8

8.625 219.1

15.00 381.0

8.720 221.5

1.620 41.10

2.440 61.90

10.25 260.3

10.62 269.7

12

1.000 25.40

13.00 330.2

24.2

10

10.75 273.0

17.50 444.5

10.88 276.3

1.880 47.70

2.620 66.55

12.62 320.5

12.75 323.9

16

1.120 28.40

15.25 387.3

34.1

12

12.75 323.8

20.50 520.7

12.88 327.1

2.000 50.80

2.880 73.15

14.75 374.6

15.00 381.0

16

1.250 31.70

17.75 450.8

49.8

14

14.00 355.6

23.00 584.2

14.14 359.1

2.120 53.80

3.000 76.20

16.75 425.4

16.25 412.8

20

1.250 31.70

20.25 514.4

69.9

16

16.00 406.4

25.50 647.7

16.16 410.5

2.250 57.15

3.250 82.50

19.00 482.6

18.50 469.9

20

1.380 35.00

22.50 571.5

88.1

18

18.00 457.2

28.00 711.2

18.18 461.8

2.380 60.45

3.500 88.90

21.00 533.4

21.00 533.4

24

1.380 35.00

24.75 628.7

109

20

20.00 508.0

30.50 774.7

20.20 513.1

2.500 63.50

3.750 95.20

23.12 587.2

23.00 584.2

24

1.380 35.00

27.00 685.8

134

24

24.00 609.6

36.00 914.4

24.25 616.0

2.750 69.85

4.190 106.4

27.62 701.5

27.25 692.2

24

1.620 41.00

32.00 812.8

201

Notes -Weights are based on manufacturer’s data and are approximate. -Flat face flanges may be provided at full thickness, C, or with raised face removed (the latter is nonstandard).

ANSI-ASME-B16-5-Slip-On-Flange-Dimensions-class400lb

ANSI-ASME-B16-5-Slip-On-Flange-Dimensions-class400lb

Class 400 lbs



Pipe



Flange Data



Hub

Raised Face

Drilling Data

Weight

NominalPipe Size



Outside Diameter

Overall Diameter

Inside Diameter

FlangeThickness min

Overall Length

Hub Diameter

Face Diameter

Number of Holes

Bolt Hole Diameter

Diameter of Circle of Holes

kg/piece



in

in

in

in

in

in

in



in

in



mm

mm

mm

mm

mm

mm

mm



mm

mm



1/2

0.840 21.30

3.750 95.30

0.880 22.40

0.560 14.20

0.880 22.40

1.500 38.10

1.380 35.10

4

0.620 15.70

2.620 66.55

0.74

3/4

1.050 26.70

4.620 117.3

1.090 27.70

0.620 15.70

1.000 25.40

1.880 47.70

1.690 42.90

4

0.750 19.10

3.250 82.50

1.27

1

1.315 33.40

4.880 124.0

1.360 34.50

0.690 17.50

1.060 26.90

2.120 53.80

2.000 50.80

4

0.750 19.10

3.500 88.90

1.52

11/4

1.660 42.20

5.250 133.4

1.700 43.20

0.810 20.60

1.120 28.40

2.500 63.50

2.500 63.50

4

0.750 19.10

3.880 98.60

2.03

11/2

1.900 48.30

6.120 155.4

1.950 49.50

0.880 22.40

1.250 31.75

2.750 69.85

2.880 73.15

4

0.880 22.40

4.500 114.3

2.96

2

2.375 60.30

6.500 165.1

2.440 62.00

1.000 25.40

1.440 36.60

3.310 84.00

3.620 91.90

8

0.750 19.10

5.000 127.0

3.62

21/2

2.875 73.00

7.500 190.5

2.940 74.70

1.120 28.40

1.620 41.10

3.940 100.0

4.120 104.6

8

0.880 22.40

5.880 149.4

5.28

3

3.500 88.90

8.250 209.6

3.570 90.70

1.250 31.75

1.810 46.00

4.620 117.3

5.000 127.0

8

0.880 22.40

6.620 168.1

7.00

31/2

4.000 101.6

9.000 228.6

4.070 103.4

1.380 35.10

1.940 49.30

5.250 133.3

5.500 139.7

8

1.000 25.40

7.250 184.2

8.84

4

4.500 114.3

10.00 254.0

4.570 116.1

1.380 35.10

2.000 50.80

5.750 146.0

6.190 157.2

8

1.000 25.40

7.880 200.1

11.1

5

5.563 141.3

11.00 279.4

5.660 143.8

1.500 38.10

2.120 53.80

7.000 177.8

7.310 185.7

8

1.000 25.40

9.250 234.9

13.9

6

6.625 168.3

12.50 317.5

6.720 170.7

1.620 41.10

2.250 57.15

8.120 206.2

8.500 215.9

12

1.000 25.40

10.62 269.7

18.3

8

8.625 219.1

15.00 381.0

8.720 221.5

1.880 47.80

2.690 68.30

10.25 260.3

10.62 269.7

12

1.120 28.40

13.00 330.2

28.6

10

10.75 273.0

17.50 444.5

10.88 276.3

2.120 53.80

2.880 73.15

12.62 320.5

12.75 323.9

16

1.250 31.75

15.25 387.3

39.2

12

12.75 323.8

20.50 520.7

12.88 327.1

2.250 57.15

3.120 79.25

14.75 374.6

15.00 381.0

16

1.380 35.10

17.75 450.8

57.0

14

14.00 355.6

23.00 584.2

14.14 359.1

2.380 60.05

3.310 84.10

16.75 425.4

16.25 412.8

20

1.380 35.10

20.25 514.4

79.1

16

16.00 406.4

25.50 647.7

16.16 410.5

2.500 63.50

3.690 93.70

19.00 482.6

18.50 469.9

20

1.500 38.10

22.50 571.5

101

18

18.00 457.2

28.00 711.2

18.18 461.8

2.620 66.55

3.880 98.60

21.00 533.4

21.00 533.4

24

1.500 38.10

24.75 628.7

123

20

20.00 508.0

30.50 774.7

20.20 513.1

2.750 69.85

4.000 101.6

23.12 587.2

23.00 584.2

24

1.620 41.10

27.00 685.8

146

24

24.00 609.6

36.00 914.4

24.25 616.0

3.000 76.20

4.500 114.3

27.62 701.5

27.25 692.2

24

1.880 47.80

32.00 812.8

219

Notes -Weights are based on manufacturer’s data and are approximate.

ANSI-ASME-B16-5-Slip-On-Flange-Dimensions-class600lb

ANSI-ASME-B16-5-Slip-On-Flange-Dimensions-class600lb

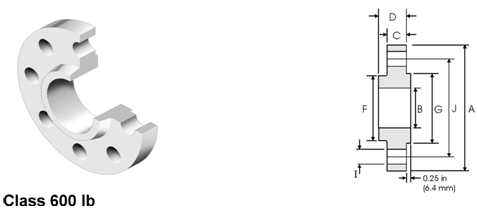

Class 600 lbs



Pipe



Flange Data



Hub

Raised Face

Drilling Data

Weight

NominalPipe Size



Outside Diameter

Overall Diameter

Inside Diameter

FlangeThickness min

Overall Length

Hub Diameter

Face Diameter

Number of Holes

Bolt Hole Diameter

Diameter of Circle of Holes

kg/piece



in

in

in

in

in

in

in



in

in



mm

mm

mm

mm

mm

mm

mm



mm

mm



1/2

0.840 21.30

3.750 95.30

0.880 22.40

0.560 14.20

0.880 22.40

1.500 38.10

1.380 35.10

4

0.620 15.70

2.620 66.55

0.74

3/4

1.050 26.70

4.620 117.3

1.090 27.70

0.620 15.70

1.000 25.40

1.880 47.80

1.690 42.90

4

0.750 19.10

3.250 82.60

1.27

1

1.315 33.40

4.880 124.0

1.360 34.50

0.690 17.50

1.060 26.90

2.120 53.80

2.000 50.80

4

0.750 19.10

3.500 88.90

1.52

11/4

1.660 42.20

5.250 133.4

1.700 43.20

0.810 20.60

1.120 28.40

2.500 63.50

2.500 63.50

4

0.750 19.10

3.880 98.60

2.03

11/2

1.900 48.30

6.120 155.4

1.950 49.50

0.880 22.40

1.250 31.75

2.750 69.85

2.880 73.15

4

0.880 22.40

4.500 114.3

2.96

2

2.375 60.30

6.500 165.1

2.440 62.00

1.000 25.40

1.440 36.60

3.310 84.10

3.620 91.90

8

0.750 19.10

5.000 127.0

3.62

21/2

2.875 73.00

7.500 190.5

2.940 74.70

1.120 28.40

1.620 41.10

3.940 100.1

4.120 104.6

8

0.880 22.40

5.880 149.4

5.28

3

3.500 88.90

8.250 209.6

3.570 90.70

1.250 31.75

1.810 46.00

4.620 117.3

5.000 127.0

8

0.880 22.40

6.620 168.1

7.00

31/2

4.000 101.6

9.000 228.6

4.070 103.4

1.380 35.10

1.940 49.30

5.250 133.4

5.500 139.7

8

1.000 25.40

7.250 184.2

8.84

4

4.500 114.3

10.75 273.1

4.570 116.1

1.500 38.10

2.120 53.80

6.000 152.4

6.190 157.2

8

1.000 25.40

8.500 215.9

14.5

5

5.563 141.3

13.00 330.2

5.660 143.8

1.750 44.50

2.380 60.45

7.440 189.0

7.310 185.7

8

1.120 28.40

10.50 266.7

24.4

6

6.625 168.3

14.00 355.6

6.720 170.7

1.880 47.80

2.620 66.55

8.750 222.3

8.500 215.9

12

1.120 28.40

11.50 292.1

28.7

8

8.625 219.1

16.50 419.1

8.720 221.5

2.190 55.60

3.000 76.20

10.75 273.1

10.62 269.7

12

1.250 31.75

13.75 349.3

43.4

10

10.75 273.0

20.00 508.0

10.88 276.3

2.500 63.50

3.380 85.90

13.50 342.9

12.75 323.9

16

1.380 35.10

17.00 431.8

70.3

12

12.75 323.8

22.00 558.8

12.88 327.1

2.620 66.55

3.620 91.90

15.75 400.1

15.00 381.0

20

1.380 35.10

19.25 489.0

84.2

14

14.00 355.6

23.75 603.3

14.14 359.1

2.750 69.85

3.690 93.70

17.00 431.8

16.25 412.8

20

1.500 38.10

20.75 527.1

98.7

16

16.00 406.4

27.00 685.8

16.16 410.5

3.000 76.20

4.190 106.4

19.50 495.3

18.50 469.9

20

1.620 41.10

23.75 603.3

142

18

18.00 457.2

29.25 743.0

18.18 461.8

3.250 82.60

4.620 117.3

21.50 546.1

21.00 533.4

20

1.750 44.50

25.75 654.1

173

20

20.00 508.0

32.00 812.8

20.20 513.1

3.500 88.90

5.000 127.0

24.00 609.6

23.00 584.2

24

1.750 44.50

28.50 723.9

220

24

24.00 609.6

37.00 939.8

24.25 616.0

4.000 101.6

5.500 139.7

28.25 717.6

27.25 692.2

24

2.000 50.80

33.00 838.2

312

Notes -Weights are based on manufacturer’s data and are approximate.

ANSI-ASME-B16-5-Slip-On-Flange-Dimensions-class900lb

ANSI-ASME-B16-5-Slip-On-Flange-Dimensions-class900lb

Class 900 lbs



Pipe



Flange Data



Hub

Raised Face

Drilling Data

Weight

NominalPipe Size



Outside Diameter

Overall Diameter

Inside Diameter

FlangeThickness min

Overall Length

Hub Diameter

Face Diameter

Number of Holes

Bolt Hole Diameter

Diameter of Circle of Holes

kg/piece



in

in

in

in

in

in

in



in

in



mm

mm

mm

mm

mm

mm

mm



mm

mm



1/2

0.840 21.30

4.750 120.6

0.880 22.40

0.880 22.40

1.250 31.70

1.500 38.10

1.380 35.10

4

0.880 22.40

3.250 82.50

1.74

3/4

1.050 26.70

5.120 130.0

1.090 27.70

1.000 25.40

1.380 35.00

1.750 44.40

1.690 42.90

4

0.880 22.40

3.500 88.90

2.34

1

1.315 33.40

5.880 149.3

1.360 34.50

1.120 28.40

1.620 41.10

2.060 52.30

2.000 50.80

4

1.000 25.40

4.000 101.6

3.44

11/4

1.660 42.20

6.250 158.7

1.700 43.20

1.120 28.40

1.620 41.10

2.500 63.50

2.500 63.50

4

1.000 25.40

4.380 111.2

3.91

11/2

1.900 48.30

7.000 177.8

1.950 49.50

1.250 31.70

1.750 44.50

2.750 69.85

2.880 73.15

4

1.120 28.40

4.880 123.9

5.36

2

2.375 60.30

8.500 215.9

2.440 62.00

1.500 38.10

2.250 57.15

4.120 104.6

3.620 91.90

8

1.000 25.40

6.500 165.1

9.85

21/2

2.875 73.00

9.620 244.3

2.940 74.70

1.620 41.10

2.500 63.50

4.880 123.9

4.120 104.6

8

1.120 28.40

7.500 190.5

13.7

3

3.500 88.90

9.500 241.3

3.570 90.70

1.500 38.10

2.120 53.80

5.000 127.0

5.000 127.0

8

1.000 25.40

7.500 190.5

11.6

4

4.500 114.3

11.50 292.1

4.570 116.1

1.750 44.40

2.750 69.85

6.250 158.7

6.190 157.2

8

1.250 31.70

9.250 234.9

19.7

5

5.563 141.3

13.75 349.2

5.660 143.8

2.000 50.80

3.120 79.25

7.500 190.5

7.310 185.7

8

1.380 35.00

11.00 279.4

31.9

6

6.625 168.3

15.00 381.0

6.720 170.7

2.190 55.60

3.380 85.80

9.250 234.9

8.500 215.9

12

1.250 31.70

12.50 317.5

41.1

8

8.625 219.1

18.50 469.9

8.720 221.5

2.500 63.50

4.000 101.6

11.75 298.4

10.62 269.7

12

1.500 38.10

15.50 393.7

70.7

10

10.75 273.0

21.50 546.1

10.88 276.3

2.750 69.85

4.250 107.9

14.50 368.3

12.75 323.9

16

1.500 38.10

18.50 469.9

101

12

12.75 323.8

24.00 609.6

12.88 327.1

3.120 79.25

4.620 117.3

16.50 419.1

15.00 381.0

20

1.500 38.10

21.00 533.4

133

14

14.00 355.6

25.25 641.3

14.14 359.1

3.380 85.80

5.120 130.0

17.75 450.8

16.25 412.8

20

1.620 41.10

22.00 558.8

153

16

16.00 406.4

27.75 704.8

16.16 410.5

3.500 88.90

5.250 133.3

20.00 508.0

18.50 469.9

20

1.750 44.40

24.25 615.9

185

18

18.00 457.2

31.00 787.4

18.18 461.8

4.000 101.6

6.000 152.4

22.25 565.1

21.00 533.4

20

2.000 50.80

27.00 685.8

258

20

20.00 508.0

33.75 857.2

20.20 513.1

4.250 107.9

6.250 158.7

24.50 622.3

23.00 584.2

20

2.120 53.80

29.50 749.3

317

24

24.00 609.6

41.00 1041.4

24.25 616.0

5.500 139.7

8.000 203.2

29.50 749.3

27.25 692.2

20

2.620 66.55

35.50 901.7

606

Notes -Weights are based on manufacturer’s data and are approximate.

ANSI-ASME-B16-5-Slip-On-Flange-Dimensions-class1500lb

ANSI-ASME-B16-5-Slip-On-Flange-Dimensions-class1500lb



Class 1500 lb

Pipe



Flange Data



Hub

Raised Face

Drilling Data

Weight

NominalPipe Size



Outside Diameter

Overall Diameter

Inside Diameter

FlangeThickness min

Overall Length

Hub Diameter

Face Diameter

Number of Holes

Bolt Hole Diameter

Diameter of Circle of Holes

kg/piece



in

in

in

in

in

in

in



in

in



mm

mm

mm

mm

mm

mm

mm



mm

mm



1/2

0.840 21.30

4.750 120.6

0.880 22.40

0.880 22.40

1.250 31.70

1.500 38.10

1.380 35.10

4

0.880 22.40

3.250 82.50

1.74

3/4

1.050 26.70

5.120 130.0

1.090 27.70

1.000 25.40

1.380 35.00

1.750 44.40

1.690 42.90

4

0.880 22.40

3.500 88.90

2.34

1

1.315 33.40

5.880 149.3

1.360 34.50

1.120 28.40

1.620 41.10

2.060 52.30

2.000 50.80

4

1.000 25.40

4.000 101.6

3.44

11/4

1.660 42.20

6.250 158.7

1.700 43.20

1.120 28.40

1.620 41.10

2.500 63.50

2.500 63.50

4

1.000 25.40

4.380 111.2

3.91

11/2

1.900 48.30

7.000 177.8

1.950 49.50

1.250 31.70

1.750 44.50

2.750 69.85

2.880 73.15

4

1.120 28.40

4.880 123.9

5.36

2

2.375 60.30

8.500 215.9

2.440 62.00

1.500 38.10

2.250 57.15

4.120 104.6

3.620 91.90

8

1.000 25.40

6.500 165.1

9.85

21/2

2.875 73.00

9.620 244.3

2.940 74.70

1.620 41.10

2.500 63.50

4.880 123.9

4.120 104.6

8

1.120 28.40

7.500 190.5

13.7

Notes -Weights are based on manufacturer’s data and are approximate.

X

skype
email
